Transpedicular Screw Systems

Cerebro® is a spinal system that offers a rich alternative to all implants and hand tools that may
be needed for thoracic, lumbar and sacral regions in spinal stabilization and correction.

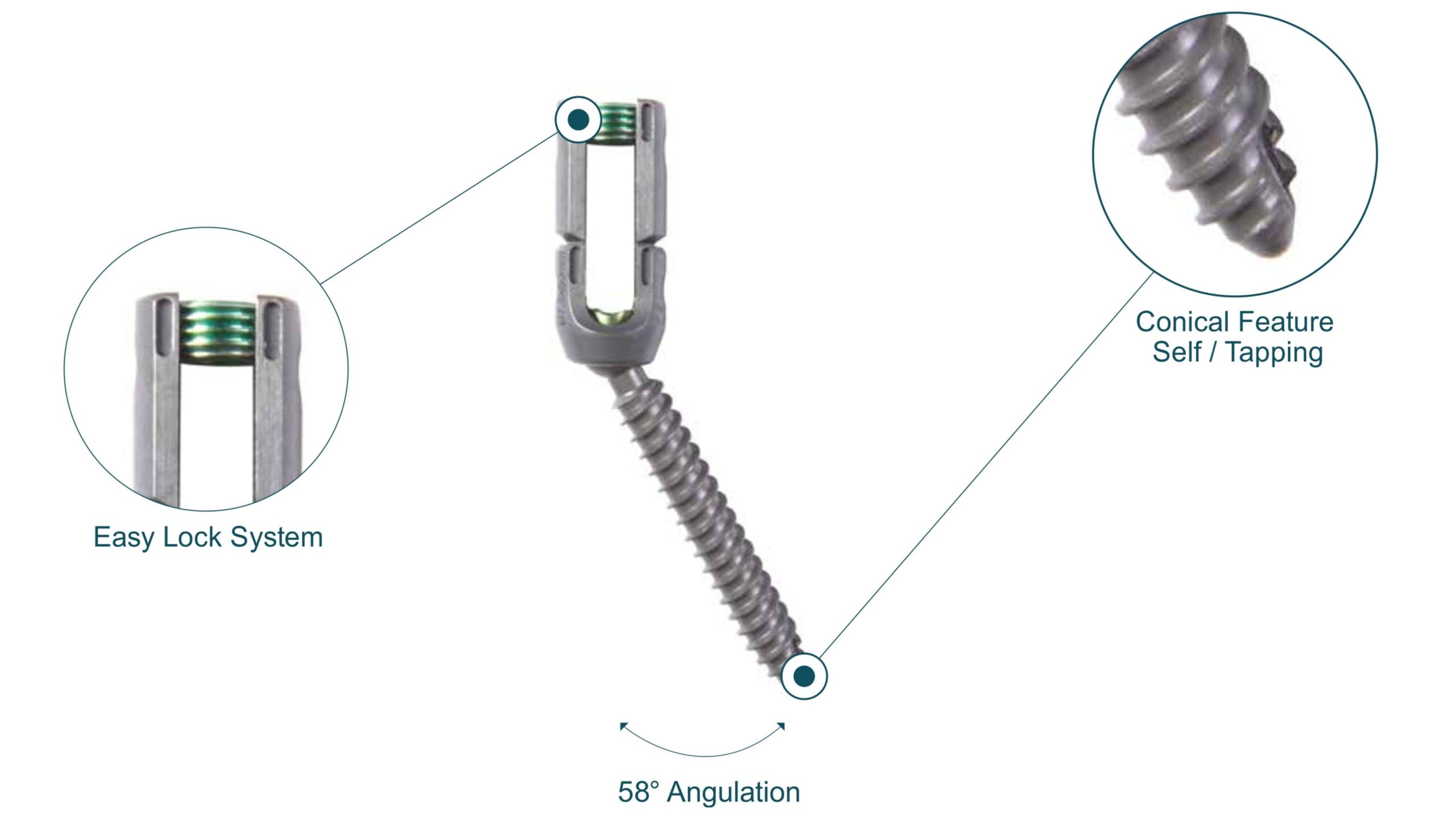

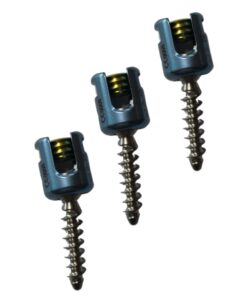

The Cerebro® Spinal system includes self-tapping polyaxial screws, monoaxial screws, reduction screws and iliac screws.

Axial and parallel connectors, lateral offset connectors, extendable transverse connections that can be extended, straight rods as well as ready slanted rods with self- lordosis angle, hook types and all auxiliary implants are available in the system for each diameter that may be needed in the treatment of complicated spinal pathologies.

The low-profile screw structure reduces anatomical contact and also minimizes the damage of
the implant to soft tissues. By applying a color code on the core part of the screw that does not
come into contact with the body, the possibility of substance release into the body of the implant caused by the anodic oxidation process is eliminated.

The screws are designed and manufactured with double threads. This feature allows the screw to travel quickly .It reduces the bone loss of the patient during the operation. It minimizes the risk of pull-out by ensuring the tight grip of the screw. In all screws, the screw diameter increases parallel to the screw diameter. Torx head set screws allow the user to apply more torque force than normal when locking.Excessive torque makes locking stronger. Excessive torque application on other set screws in different head forms greatly reveals stripping in the applied area. This risk is minimal in Torx design. The fact that stripping is minimized even at extreme torques is a factor that extends the life of both the implant and the set screw sender. The special thread form of the set screw shifts the forces on the side surfaces vertically during and after locking, preventing any opening in the screw body and thus loosening the system.

IMPXS40025 ~ 60 POLYAXIAL SCREW – Ø 4,0 x 25 ~ 60 mm
IMPXS45025 ~ 60 POLYAXIAL SCREW– Ø 4,5 x 25 ~ 60 mm
IMPXS50025 ~ 60 POLYAXIAL SCREW – Ø 5,0 x 25 ~ 60 mm
IMPXS55025 ~ 60 POLYAXIAL SCREW – Ø 5,5 x 25 ~ 60 mm
IMPXS60025 ~ 60 POLYAXIAL SCREW – Ø 6,0 x 25 ~ 60 mm
IMPXS65025 ~ 60 POLYAXIAL SCREW – Ø 6,5 x 25 ~ 60 mm
IMPXS70025 ~ 60 POLYAXIAL SCREW– Ø 7,0 x 25 ~ 60 mm
IMPXS75025 ~ 60 POLYAXIAL SCREW– Ø 7,5 x 25 ~ 60 mm
IMPXS80025 ~ 60 POLYAXIAL SCREW – Ø 8,0 x 25 ~ 60 mm
IMPXS85025 ~110 POLYAXIAL SCREW – Ø 8,5 x 25 ~110 mm

IMMXS45025 ~ 60 MONOAXIAL SCREW – Ø 4,5 x 25 ~ 60 mm
IMMXS55025 ~ 60 MONOAXIAL SCREW – Ø 5,5 x 25 ~ 60 mm
IMMXS65025 ~ 60 MONOAXIAL SCREW – Ø 6,5 x 25 ~ 60 mm
IMMXS75025 ~ 60 MONOAXIAL SCREW – Ø 7,5 x 25 ~ 60 mm
IMMXS85025 ~ 110 MONOAXIAL SCREW – Ø 8,5 x 25 ~ 110 mm

IMPRX40025 ~ 60 POLYAXIAL REDUCTION SCREW– Ø 4,0 x 25 ~ 60 mm
IMPRX45025 ~ 60 POLYAXIAL REDUCTION SCREW– Ø 4,5 x 25 ~ 60 mm
IMPRX50025 ~ 60 POLYAXIAL REDUCTION SCREW – Ø 5,0 x 25 ~ 60 mm
IMPRX55025 ~ 60 POLYAXIAL REDUCTION SCREW– Ø 5,5 x 25 ~ 60 mm
IMPRX60025 ~ 60 POLYAXIAL REDUCTION SCREW – Ø 6,0 x 25 ~ 60 mm
IMPRX65025 ~ 60 POLYAXIAL REDUCTION SCREW – Ø 6,5 x 25 ~ 60 mm
IMPRX70025 ~ 60 POLYAXIAL REDUCTION SCREW – Ø 7,0 x 25 ~ 60 mm
IMPRX75025 ~ 60 POLYAXIAL REDUCTION SCREW – Ø 7,5 x 25 ~ 60 mm
IMPRX80025 ~ 60 POLYAXIAL REDUCTION SCREW – Ø 8,0 x 25 ~ 60 mm
IMPRX85025 ~ 110 POLYAXIAL REDUCTION SCREW – Ø 8,5 x 25 ~ 110 mm

IMPFX55025 ~ 60 POLYAXIAL FENESTRED SCREW – Ø 5,5 x 25 ~ 60 mm
IMPFX60025 ~ 60 POLYAXIAL FENESTRED SCREW– Ø 6,0 x 25 ~ 60 mm
IMPFX65025 ~ 60 POLYAXIAL FENESTRED SCREW – Ø 6,5 x 25 ~ 60 mm
IMPFX70025 ~ 60 POLYAXIAL FENESTRED SCREW – Ø 7,0 x 25 ~ 60 mm
IMPFX75025 ~ 60 POLYAXIAL FENESTRED SCREW – Ø 7,5 x 25 ~ 60 mm

IMMFX65025 ~ 60 MONOAXIAL FENESTRED SCREW – Ø 6,5 x 25 ~ 60 mm
IMMFX75025 ~ 60 MONOAXIAL FENESTRED SCREW – Ø 7,5 x 25 ~ 60 mm

IMPCX55025 ~ 60 POLYAXIAL CANNULATED SCREW – Ø 5,5 x 25 ~ 60 mm
IMPCX60025 ~ 60 POLYAXIAL CANNULATED SCREW – Ø 6,0 x 25 ~ 60 mm
IMPCX65025 ~ 60 POLYAXIAL CANNULATED SCREW– Ø 6,5 x 25 ~ 60 mm
IMPCX70025 ~ 60 POLYAXIAL CANNULATED SCREW – Ø 7,0 x 25 ~ 60 mm
IMPCX75025 ~ 60 POLYAXIAL CANNULATED SCREW– Ø 7,5 x 25 ~ 60 mm
IMPCX80025 ~ 60 POLYAXIAL CANNULATED SCREW – Ø 8,0 x 25 ~ 60 mm
IMPCX85025 ~ 110 POLYAXIAL CANNULATED SCREW – Ø 8,5 x 25 ~ 110 mm

IMMCX65025 ~ 60 MONOAXIAL CANNULATED SCREW– Ø 6,5 x 25 ~ 60 mm
IMMCX75025 ~ 60 MONOAXIAL CANNULATED SCREW– Ø 7,5 x 25 ~ 60 mm
IMMCX85025 ~ 110 MONOAXIAL CANNULATED SCREW– Ø 8,5 x 25 ~ 110 mm

IMPXC35010 ~ 30 CERVICAL POLYAXIAL SCREW– Ø 3.5 x 10 mm ~ 30 mm
IMPXC40014 ~ 40 CERVICAL POLYAXIAL SCREW – Ø 4.0 x 14 mm ~ 40 mm

IMMXP40025 ~ 35 PEDIATRIC MONOAXIAL SCREW – Ø 4.0 x 25 mm ~ 35 mm
IMMXP45025 ~ 40 PEDIATRIC MONOAXIAL SCREW – Ø 4.5 x 25 mm ~ 40 mm
IMMXP50030 ~ 40 PEDIATRIC MONOAXIAL SCREW – Ø 5.0 x 30 mm ~ 40 mm
IMMXP55030 ~ 45 PEDIATRIC MONOAXIAL SCREW – Ø 5.5 x 30 mm ~ 45 mm

IMPXP40020 ~ 35 PEDIATRIC POLYAXIAL SCREW – Ø 4.0 x 20 mm ~ 35 mm
IMPXP45025 ~ 40 PEDIATRIC POLYAXIAL SCREW – Ø 4.5 x 25 mm ~ 40 mm
IMPXP50025 ~ 40 PEDIATRIC POLYAXIAL SCREW – Ø 5.0 x 25 mm ~ 40 mm
IMPXP55030 ~ 50 PEDIATRIC POLYAXIAL SCREW – Ø 5.5 x 30 mm ~ 50 mm

IMHOO02001 ~PEDIATRIC OPEN LAMINAR HOOK SMALL
IMHOO02003 ~PEDIATRIC OPEN LAMINAR HOOK LARGE

IMHOO01001 ~PEDIATRIC OPEN PEDICLE HOOK SMALL
IMHOO01003 ~PEDIATRIC OPEN PEDICLE HOOK LARGE

IMTLC00000 ~PEDIATRIC CROSS LINK CONNECTOR
IMCON00000 ~PEDIATRIC AXIAL CONNECTOR
IMCON10000 ~PEDIATRIC DOUBLE CONNECTOR

IMTLB10000 ~ TRANSVERS LINK OPEN TYPE TOOL

IMTLB20000 ~ TRANSVERS LINK CLOSED TYPE TOOL

IMTL000040 ~ 90 TRANSVERS LINK BAR – 40~90 mm

IMTLB30040 ~ 90 MULTIAXIAL TRANSVERSE 30-40 / 40-50 / 50-60 / 60-70 / 80-90

IMILC00010 ~ 40 ILIAC CONNECTOR L10 ~ L40

IMILX00060 ~ 110 ILIAC SCREW 0° L60 ~ 110 mm

IMILX20060 ~ 110 ILIAC SCREW 20° L60 ~ 110 mm

IMLOC00001 ~ 3 LATERAL OFFSET CONNECTOR 20 mm ~ 40m

IMHOO00001 ~ 13 HOOK TYPE1 ~ 13

IMDOC55558 ~DOUBLE CONNECTOR Ø5,5/Ø5,5 D8 MM
IMDOC55508 ~DOUBLE CONNECTOR Ø5,5/Ø5,0 D8 MM
IMDOC55358 ~DOUBLE CONNECTOR Ø5,5/Ø3,5 D8 MM
IMDOC60608 ~DOUBLE CONNECTOR Ø6,0/Ø6,0 D8 MM
IMDOC60508 ~DOUBLE CONNECTOR Ø6,0/Ø5,0 D8 MM
IMDOC60358 ~DOUBLE CONNECTOR Ø6,0/Ø3,5 D8 MM
IMDOC55559 ~DOUBLE CONNECTOR Ø5,5/Ø5,5 D9 MM
IMDOC55509 ~DOUBLE CONNECTOR Ø5,5/Ø5,0 D9 MM
IMDOC55359 ~DOUBLE CONNECTOR Ø5,5/Ø3,5 D9 MM
IMDOC60609 ~DOUBLE CONNECTOR Ø6,0/Ø6,0 D9 MM
IMDOC60509 ~DOUBLE CONNECTOR Ø6,0/Ø5,0 D9 MM
IMDOC60359 ~DOUBLE CONNECTOR Ø6,0/Ø3,5 D9 MM
IMDOC555510 ~DOUBLE CONNECTOR Ø5,5/Ø5,5 D10 MM
IMDOC555010 ~DOUBLE CONNECTOR Ø5,5/Ø5,0 D10 MM
IMDOC553510 ~DOUBLE CONNECTOR Ø5,5/Ø3,5 D10 MM
IMDOC606010 ~DOUBLE CONNECTOR Ø6,0/Ø6,0 D10 MM

IMDOC605010 ~DOUBLE CONNECTOR Ø6,0/Ø5,0 D10 MM
IMDOC603510 ~DOUBLE CONNECTOR Ø6,0/Ø3,5 D10 MM
IMDOC555511 ~DOUBLE CONNECTOR Ø5,5/Ø5,5 D11 MM
IMDOC555011 ~DOUBLE CONNECTOR Ø5,5/Ø5,0 D11 MM
IMDOC553511 ~DOUBLE CONNECTOR Ø5,5/Ø3,5 D11 MM
IMDOC606011~DOUBLE CONNECTOR Ø6,0/Ø6,0 D11 MM
IMDOC605011 ~DOUBLE CONNECTOR Ø6,0/Ø5,0 D11 MM
IMDOC603511 ~DOUBLE CONNECTOR Ø6,0/Ø3,5 D11 MM
IMDOC555512 ~DOUBLE CONNECTOR Ø5,5/Ø5,5 D12 MM
IMDOC555012 ~DOUBLE CONNECTOR Ø5,5/Ø5,0 D12 MM
IMDOC553512 ~DOUBLE CONNECTOR Ø5,5/Ø3,5 D12 MM
IMDOC606012 ~DOUBLE CONNECTOR Ø6,0/Ø6,0 D12 MM
IMDOC605012 ~DOUBLE CONNECTOR Ø6,0/Ø5,0 D12 MM
IMDOC603512 ~DOUBLE CONNECTOR Ø6,0/Ø3,5 D12 MM
IMDOT606000 ~DOUBLE CONNECTOR Ø6,0/Ø6,0 TWO HOLE
IMDTT606000 ~DOUBLE CONNECTOR Ø6,0/Ø3,5 THREE HOLE

IMOSC00001 ~OPEN OFFSET SLOT CONNECTOR – RIGHT
IMOSC00002 ~OPEN OFFSET SLOT CONNECTOR – LEFT
IMOSC10001 ~OFFSET SLOT CONNECTOR – RIGHT
IMOSC10002 ~OFFSET SLOT CONNECTOR – LEFT
IMSBL00001 ~SACRAL BLOCK – RIGHT
IMSBL00002 ~SACRAL BLOCK – LEFT
IMSBX00040 ~SACRAL BLOCK SCREW – 40 mm
IMSBX00045 ~SACRAL BLOCK SCREW – 45 mm
IMSBX00050 ~SACRAL BLOCK SCREW – 50 mm
IMSBX00055 ~SACRAL BLOCK SCREW – 55 mm
IMSBX00060 ~SACRAL BLOCK SCREW – 60 mm
IMOCP00030 ~40 OXYPITAL PLATE– 30 mm ~ 40 mm
IMOCR00010 ~60 OCIPITAL ROD L1 ~ L6
IMOCP10200 ~OMNIAXIAL OCIPITAL PLATE – RIGHT
IMOCP10100 ~OMNIAXIAL OCIPITAL PLATE – LEFT
IMCON10005 ~CERVICAL DOUBLE CONNECTOR Ø 3,5mm-Ø5mm
IMCON10006 ~CERVICAL DOUBLE CONNECTOR Ø 3,5mm-Ø5,5mm
IMCON10007 ~CERVICAL DOUBLE CONNECTOR Ø 3,5mm-Ø6mm

IMTLI00025 ~CERVICAL CROSS CONNECTOR 25 mm
IMTLI00030 ~CERVICAL CROSS CONNECTOR 30 mm
IMTLI03540 ~CERVICAL CROSS CONNECTOR 35 – 40 mm
IMTLI04055 ~CERVICAL CROSS CONNECTOR 40 – 55 mm
IMTLI05580 ~CERVICAL CROSS CONNECTOR 55 – 80 mm
IMCON20000 ~CERVICAL OFFSET CONNECTOR
IMCLH00001 ~CERVICAL LAMINAR HOOK TYPE1
IMCLH00002 ~CERVICAL LAMINAR HOOK TYPE2
IMCLH00003 ~CERVICAL LAMINAR HOOK TYPE3
IMCLH00004 ~CERVICAL LAMINAR HOOK TYPE4
IMAXC55055 ~AXIAL CONNECTOR Ø5,5-Ø5,5
IMAXC55035 ~AXIAL CONNECTOR Ø5,5-Ø3,5
IMAXC55050 ~AXIAL CONNECTOR Ø5,5-Ø5,0
IMAXC60060 ~AXIAL CONNECTOR Ø6,0-Ø6,0
IMAXC60035 ~AXIAL CONNECTOR Ø6,0-Ø3,5
IMAXC60050 ~AXIAL CONNECTOR Ø6,0-Ø5,0

IMROD35030~200 ROD – Ø 3,5 x 30 mm ~ 200 mm
IMROD50060~340 ROD – Ø 5,0 x 60 mm ~ 340 mm
IMROD55004~5050 ROD – Ø 5,5 x 40 mm ~ 500 mm
IMROD60004~50 ROD – Ø 6,0 x 40 mm ~ 500 mm

IMROD55804~12 CURVED ROD – Ø 5,5 x 40 mm ~ 120 mm
IMROD60804~12 CURVED ROD – Ø 6,0 x 40 mm ~ 120 mm

IMDNR55040~200 DYNAMIC ROD – Ø 5.5 x 40 mm ~ 200 mm
IMDNR60040~200 DYNAMIC ROD – Ø 6,0 x 40 mm ~ 200 mm
